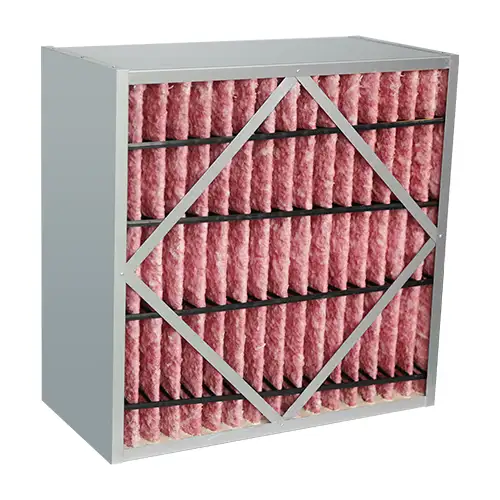

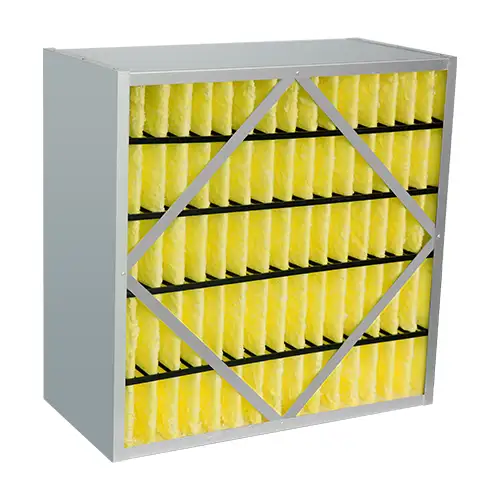

High Flow Box Filter
A high flow box filter is a type of air filter designed to handle large volumes of air while maintaining low resistance to airflow.
These filters are typically used in HVAC systems to ensure efficient air filtration without compromising the system's performance.
High flow box filters are constructed with a large surface area, often using pleated or extended surface media, which allows them to capture a high amount of particulate matter without clogging quickly.
Features:
- Grade: M5, M6, F7, F8, F9; MERV9, MERV10, MERV11, MERV12, MERV13, MERV14
- Filter material: Fiberglass or Non-woven fine fabric
- Extended surface design for better filtration
- Minimal resistance to airflow
- Enhanced dust-holding capacity
- Reducing the frequency of filter changes
- Made with robust materials to withstand high air volumes and harsh operating environments
- Customizable sizes and features
Free Sample
Customization Available
Low MOQ
Ship Globally
High Flow Box Filter Applications
· Industrial Facilities:
Ideal for environments with heavy air pollution, such as manufacturing plants, chemical processing facilities, and metalworking shops.
· Commercial Buildings:
Used in large office buildings, shopping malls, and hospitals to maintain high air quality.
· HVAC Systems:
Suitable for systems requiring high airflow rates and minimal pressure drop, such as those in data centers and laboratories.
· Clean Rooms:
Essential in maintaining contaminant-free environments in semiconductor manufacturing and pharmaceutical production.
Technical Data
| Filtration Grade | Demensions (mm) W x H x D | Rated Air Flow (m³/h) | Testing Wind Velocity (m/s) | Initial Pressure Drop (Pa) |
| M5 | 592 x 287 x 292 | 1400 | 2.24 | 50 |
| 592 x 490 x 292 | 2400 | 2.3 | ||
| 592 x 592 x 292 | 3000 | 2.36 | ||
| M6 | 592 x 287 x 292 | 1400 | 2.24 | 65 |
| 592 x 490 x 292 | 2400 | 2.3 | ||
| 592 x 592 x 292 | 3000 | 2.36 | ||
| F7 | 592 x 287 x 292 | 1400 | 2.24 | 80 |
| 592 x 490 x 292 | 2400 | 2.3 | ||
| 592 x 592 x 292 | 3000 | 2.36 | ||
| F8 | 592 x 287 x 292 | 1400 | 2.24 | 100 |
| 592 x 490 x 292 | 2400 | 2.3 | ||
| 592 x 592 x 292 | 3000 | 2.36 | ||
| F9 | 592 x 287 x 292 | 1400 | 2.24 | 120 |
| 592 x 490 x 292 | 2400 | 2.3 | ||
| 592 x 592 x 292 | 3000 | 2.36 |
Filter Customization
Please send us your requirements for custom sizes and thicknesses.
