In today’s high-tech industries, maintaining a controlled, clean environment is crucial. Whether it’s in the manufacturing of microelectronics, pharmaceuticals, or biotechnology products, air quality plays a pivotal role in ensuring product integrity. One of the most effective solutions for controlling air quality in cleanrooms is the use of Fan Filter Units (FFUs).
Fan Filter Units are self-contained systems that combine a fan and a high-efficiency filter (typically HEPA or ULPA) into one compact unit. They are widely used in cleanrooms, laboratories, and other controlled environments where airborne contamination must be minimized.
What is a Fan Filter Unit (FFU)?
A Fan Filter Unit (FFU) is an air filtration device that consists of a fan and a filter integrated into a single module. It is designed to provide a continuous flow of clean, filtered air into a controlled space. FFUs are typically mounted in the ceiling grid of cleanrooms or other controlled environments and can be used individually or in groups to create a positive pressure environment.
The main components of an FFU
Fan Motor: Draws air through the filter.
HEPA/ULPA Filter: Removes particles as small as 0.3 microns (for HEPA) or 0.12 microns (for ULPA).
Housing Unit: Contains the fan and filter, designed to fit seamlessly into cleanroom ceilings.
How FFUs Operate
FFUs are typically installed in the ceilings of cleanrooms. The units draw in air from the room, pass it through the filter to remove contaminants, and then release the purified air into the controlled environment. This creates a consistent airflow pattern, helping maintain positive pressure that prevents unfiltered air from entering the space.
Types of Filters Used
HEPA Filters: Ideal for capturing microscopic particles such as bacteria, dust, and mold spores. These filters remove at least 99.97% of airborne particles down to 0.3 microns.
ULPA Filters: Used in more stringent environments like semiconductor manufacturing, these filters capture 99.99% of particles down to 0.12 microns.
How Do Fan Filter Units Work?
Understanding how FFUs function helps explain their effectiveness in maintaining clean environments.
1. Air Intake: The fan draws air from the surrounding environment into the unit.
2. Filtration: The air passes through a HEPA or ULPA filter, which traps contaminants such as dust, bacteria, and chemical vapors.
3. Air Output: Clean, filtered air is then expelled into the cleanroom, creating a downward airflow that pushes contaminants away from critical areas.
Benefits of Modular Design
The modular nature of FFUs allows facilities to expand or reduce their air filtration capacity easily. They can be installed as single units or in combination with other FFUs to create a network that covers larger areas. This flexibility makes them a cost-effective choice for both new facilities and retrofitting existing ones.
Why Are FFUs Important?
Ensuring Product Safety and Quality
FFUs are vital in industries where contamination could lead to product defects or safety hazards. For instance, in pharmaceutical manufacturing, airborne contaminants can compromise the sterility of drugs, leading to failed batches and costly recalls.
Protecting Employees from Harmful Airborne Substances
Clean air is not only important for products but also for the health of employees. FFUs help reduce exposure to airborne allergens, chemicals, and pathogens, thereby improving workplace safety.
Cost-Effective Air Filtration Solution
Compared to traditional centralized HVAC systems, FFUs provide localized air filtration, reducing energy costs. Their modular design also means they can be scaled up or down based on changing facility needs.
Ensuring Compliance with Industry Standards
FFUs are critical for meeting the strict air quality standards required in cleanrooms, such as ISO 14644 or GMP (Good Manufacturing Practices). Achieving compliance helps companies avoid fines, maintain certifications, and protect their reputation.
Applications of Fan Filter Units
Pharmaceuticals
Ensuring sterile conditions in drug manufacturing and packaging.
Biotechnology
Maintaining contamination-free environments for research and development.
Microelectronics
Protecting sensitive electronic components from dust and particles.
Food Processing
Reducing airborne contaminants in packaging and processing areas to ensure food safety.
Healthcare Facilities
Providing clean air in operating rooms, ICUs, and laboratories.
Choosing the Right FFU for Your Facility
Selecting the best FFU involves several considerations:
Airflow Rate: The unit’s capacity to move air, measured in cubic feet per minute (CFM).
Noise Level: Lower noise levels are essential for environments like laboratories and hospitals.
Energy Efficiency: Look for units with high-efficiency motors that reduce energy consumption.
Filter Type: Choose between HEPA or ULPA filters based on the level of air purity required.
Customization Options
FFUs can be tailored to fit specific cleanroom layouts, with options for variable airflow control, smart monitoring systems, and energy-saving features.

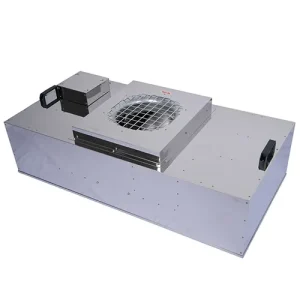

Learn more about Clean-Link’s FFU
Maintenance and Best Practices
Regular maintenance is crucial to keep FFUs operating at peak efficiency:
Filter Replacement: Regularly check and replace filters to maintain filtration efficiency.
Cleaning the Housing: Dust and debris can accumulate in the unit, so regular cleaning is necessary.
Monitoring System Performance: Implement automated systems to monitor airflow and filter condition in real-time.
Tips for Longevity
1. Schedule routine maintenance checks.
2. Use pre-filters to extend the life of HEPA/ULPA filters.
3. Ensure that fan motors are well-lubricated to prevent breakdowns.
Conclusion
Fan Filter Units are an essential component for maintaining clean and controlled environments in various industries. By providing localized air filtration, they help protect products, employees, and processes from airborne contaminants.
As industries continue to prioritize air quality, investing in FFUs will be crucial for ensuring compliance, enhancing efficiency, and maintaining a competitive edge.
The integration of smart systems and energy-efficient designs will further enhance the performance and sustainability of FFUs.
At Clean-Link, we are dedicated to providing comprehensive air filtration solutions for applications in different industries. Contact us today to address your air filtration challenges.
